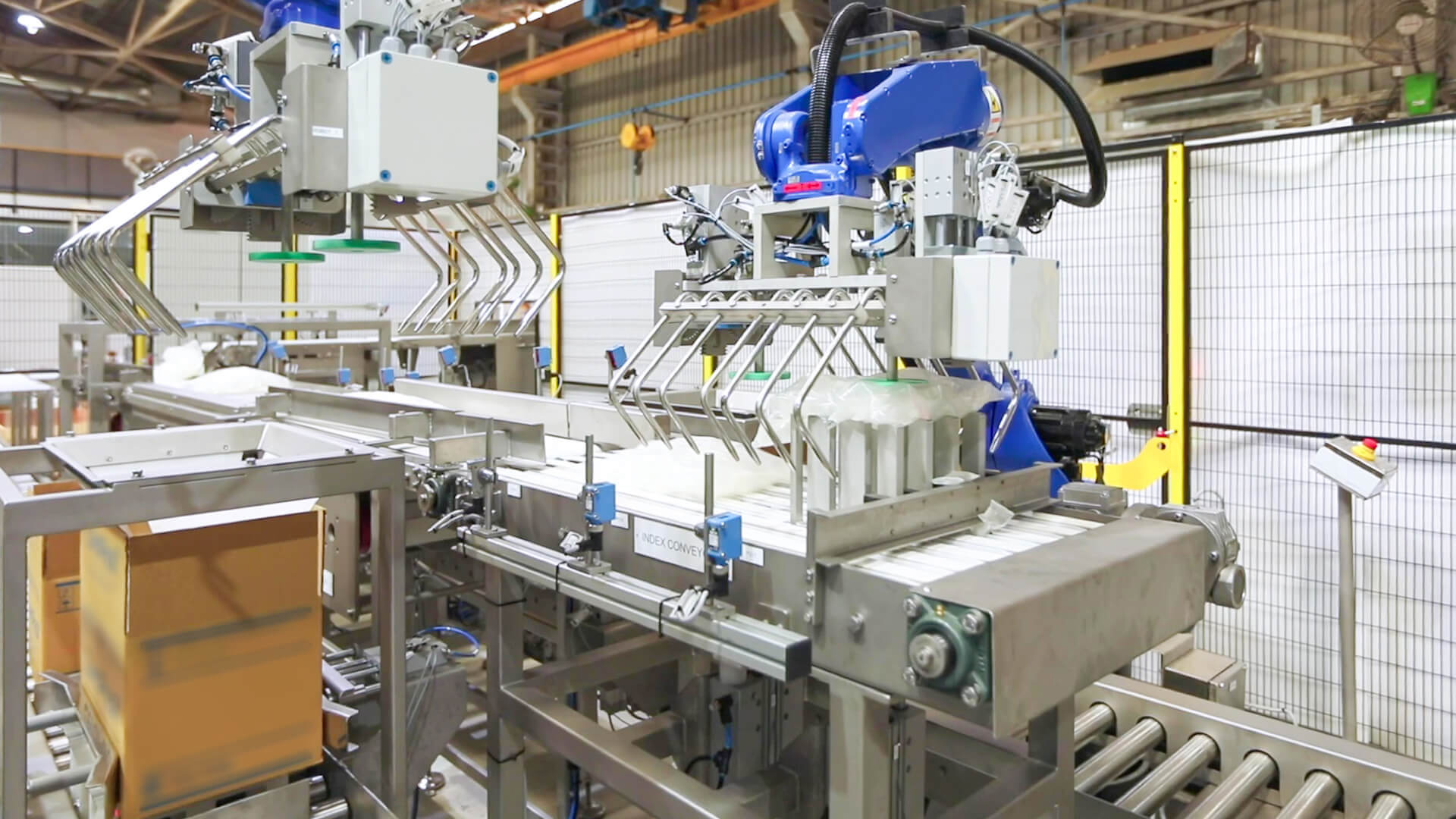

Case Packer for Pouches
The future
of automation is here.
Industry:
Food
Technical Specifications:
- Capacity - 40 pouches/min (based on pouch size)
- Payload - Upto 25 kg
- Footprint - 10 x 10 x 3 m Customizable
Cybernetik’s case packer for pouches is designed to maximize packaging density of pouches in cartons / cases via a staggered pouch lifting system that creates overlap during pouch packing. Two pick and place robots ensure high-speed operations. Optional features include cleated belt conveyor for broken pouch rejection and a metal detector.
Operations of the pouch packing system start with conveying of pouches. A vibratory conveyor uniformizes the thickness of the pouches for compact packaging. The staggered pouch lifting system of the case packer for pouches raises two pouches to slightly different heights. Two pick and place robots then load two such pouches at a time into cases.
Project Video
Cybernetik Solution
- Packaging Density: Maximized via staggered pouch lifting system and vibratory conveyor.
- High Speed: Two pick and place robots accelerate pouch packing.
- Certifications / Compliance: As-required, CE.
- Quality Control: Optional broken pouch rejection system and metal detector.
- Packaging Integrity: Optional pouch pressing system for proper case lid closure.
